Military parts precision machined by Owens detailed in this case study

Titan Rocket Sub Components for Pratt & Whitney

Precision Machining for Military Components

For over 45 years, Owens has been manufacturing military and aerospace rocket components for satellites, as well as components for intercontinental ballistic missiles – using superior, exotic materials and metals including:

  • Titanium
  • Inconel 718, 925, 625
  • Kovar
  • Invar
  • Monel
  • M50
  • Glidcop
  • High Purity OFHC – Oxygen Free Copper

Military Components MicromachinedComponents Manufactured for the Military and Aerospace Industries

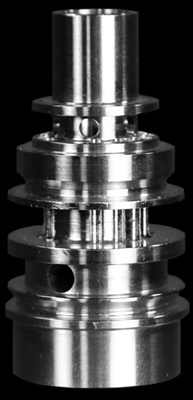

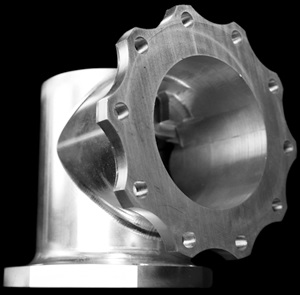

These pictures depict a couple of the military components we have manufactured for Pratt & Whitney’s titan rocket. The inside diameter of the cylinder body was made with .0002” tolerance, with a polish of 8 micro finish. The material used was A-286 alloy – it is not Inconel but it is in the Inconel family, which makes it very suitable for high temperature applications in rockets. Due to the nickel content within the A-286 alloy, this highly heat-resistant metal is tricky to machine because it is so abrasive on tooling. The housing for this component was manufactured on our 5 axis CNC machines – we also used Mill Turn Centers, which can do turning simultaneously with 5 axis milling in one setup.

To achieve the .0002” ID tolerance mentioned above, we first turned the part on our CNC Lathe, then jig ground the ID. We accomplished a 4 micro finish with honing. As simple as honing might seem, it’s extremely challenging to hone individual parts without breaking the micron tolerance. This challenge is easily completed by our experienced, old world CNC machinists and craftsmen.

In today’s computerized world, hand detailing is often required by customers. Fulfilling this request is a specialty of Owens that most other Machine Shops do not offer. This client was beyond satisfied with our results and continues to choose Owens for all of their CNC precision machining needs.



Contact our military component manufacturers to discuss your precision CNC machining needs today!
