Agie Charmilles Wire EDM & Sinker EDM Machines at Owens Industries

Owens Industries harnesses cutting-edge Agie Charmilles Wire EDM and Sinker EDM machines to deliver unparalleled precision and quality for complex components. Agie Charmilles machines stand out with advanced technology and exceptional accuracy, serving as a cornerstone of our manufacturing capabilities. Our precision equipment guarantees every component meets the highest industry standards, from intricate aerospace parts to medical devices with tight tolerances. Explore our lineup of Agie Charmilles machines or contact us today for more information.

Request a Quote

Our AGIE CHARMILLES CNC Machines

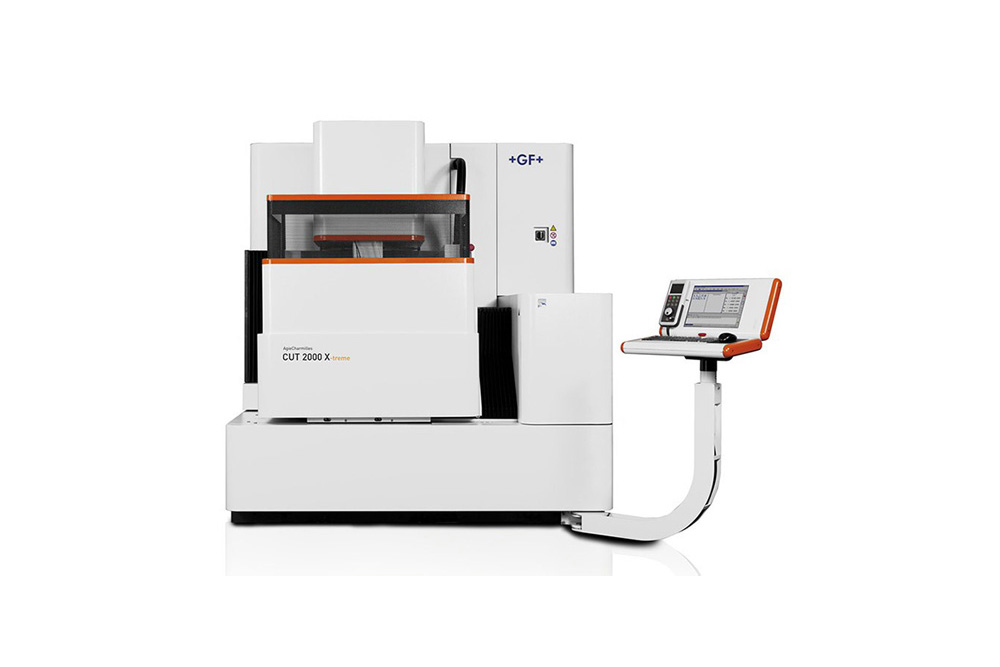

Agie Cut 2000 X w/ Indexer

The Agie Cut 2000 X w/ Indexer is a high-precision Wire EDM machine adding advanced cutting capabilities to Owens Industries' manufacturing lineup. Designed for intricate and complex parts, the Cut 2000 X is ideal for aerospace, medical and tooling applications. With its indexer functionality, high-speed cutting and exceptional accuracy, the Cut 2000 X helps Owens Industries deliver components with tight tolerances and superior surface finishes.

Dimensions

Travel (X, Y, Z): 13.77 x 9.84 x 10 in.
Max. Workpiece Dimensions: 29.5 x 21.6 x 9.8 in.
Max. Workpiece Weight (with bath): 440 lbs

Facts

Min. Surface Roughness (Ra): 0.07 μm
Max. Taper Angle / Height: ±30° / 3.93 in.
Wire diameters: 0.004 - 0.012 in (0.002 - 0.003 in optional)
Max. Wire Spool Weight: 55.11 lbs
Travel (U, V): ± 2.7in

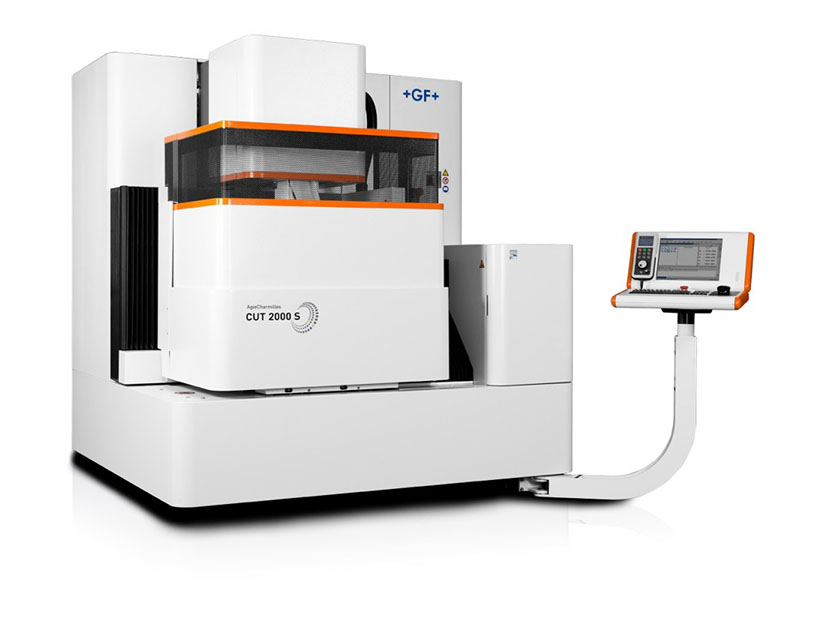

Agie Cut 2000 S

The Agie Cut 2000 S is a high-precision Wire EDM machine offering advanced cutting capabilities for Owens Industries' manufacturing needs. The Cut 2000 S is designed for intricate and complex parts in aerospace, medical and tooling applications. The Agie Cut 2000 S guarantees components with tight tolerances and superior surface finishes thanks to its high-speed cutting, exceptional accuracy and robust design.

Dimensions

Travel (X, Y, Z): 13.77 x 9.84 x 10 in
Max. Workpiece Dimensions: 29.5 x 21.6 x 9.8 in
Max. Workpiece Weight (with bath): 440 lbs

Facts

Min. Surface Roughness (Ra): 0.07 μm
Max. Taper Angle / Height: ±30° / 3.93 in
Wire Diameters: 0.004 - 0.012 in (0.002-0.003 in optional)
Max. Wire Spool Weight: 55.11 lbs
Travel (U, V): ±2.7 i

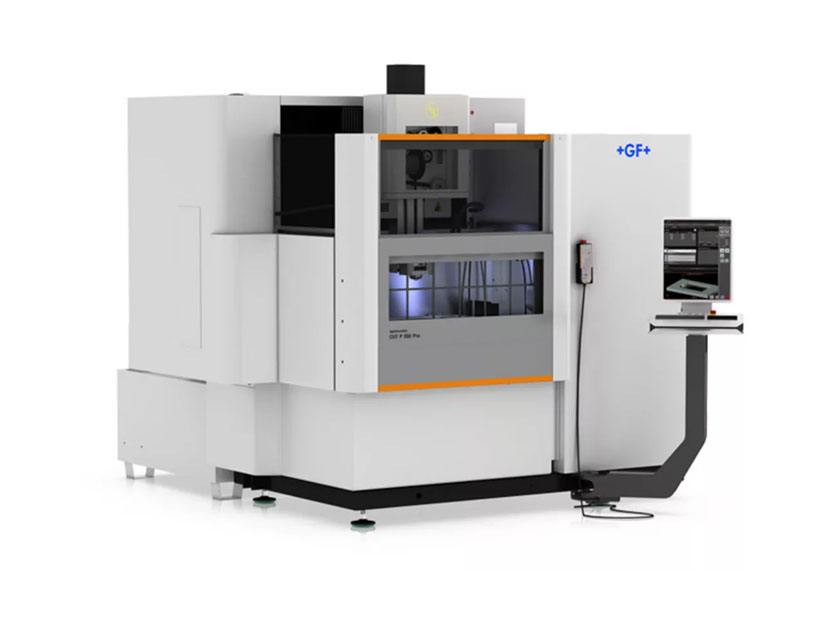

Agie Cut P 550 Pro

The Agie Cut P 550 Pro is a high-performance Wire EDM machine designed for precision and efficiency in Owens Industries' manufacturing processes. With its large workpiece capacity and advanced cutting capabilities, the Cut P 550 Pro is ideal for producing complex aerospace, automotive and energy parts. The Agie Cut P 550 Pro combines high-speed cutting, exceptional surface finishes and robust construction to deliver superior results.

Dimensions

Travel (X, Y, Z): 21.65 x 13.77 x 15.75 in
Max. Workpiece Dimensions: 47.24 x 27.56 x 15.75 in
Max. Workpiece Weight (with bath): 3,307 lbs

Facts

Min. Surface Roughness (Ra): 0.08 μm
Max. Taper Angle / Height: ±30° / 15.75 in (45° optional)
Wire Diameters: 0.006 - 0.013 in (0.003-0.004 in optional)
Max. Wire Spool Weight: 17.64 lbs (55.11 lbs optional)
Travel (U, V): 21.65 x 13.77 in

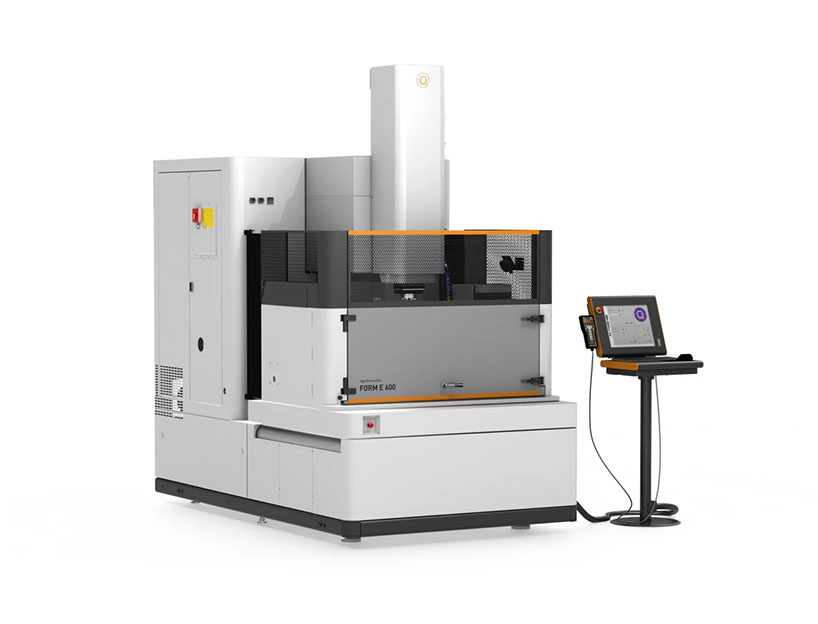

Agie Form E 600

The Agie Form E 600 is a state-of-the-art sinker EDM machine with advanced die-sinking capabilities for Owens Industries' precision manufacturing needs. Designed for complex geometries and fine surface finishes, the Form E 600 is ideal for aerospace, medical and tooling components. High-speed machining, exceptional accuracy and large workpiece capacity help the Agie Form E 600 produce unmatched quality and precision.

Dimensions

Travel (X, Y, Z): 23.62 x 15.75 x 15.75 in
Max. Workpiece Dimensions: 39.37 x 27.56 x 15.75 in
Max. Workpiece Weight (with bath): 2,204 lbs

Facts

Best Surface Finish (Ra): 0.1 μm
Min./Max. Distance Between Table and Chuck: 7.48 - 23.23 in
Max. Electrode Weight: 220 lbs
Bath Level: 5.91 - 17.72 in
Machine Weight (without dielectric): 9,700 lbs
